Introduction:
-Made with heat shrink material, crimp with a true plated copper core.

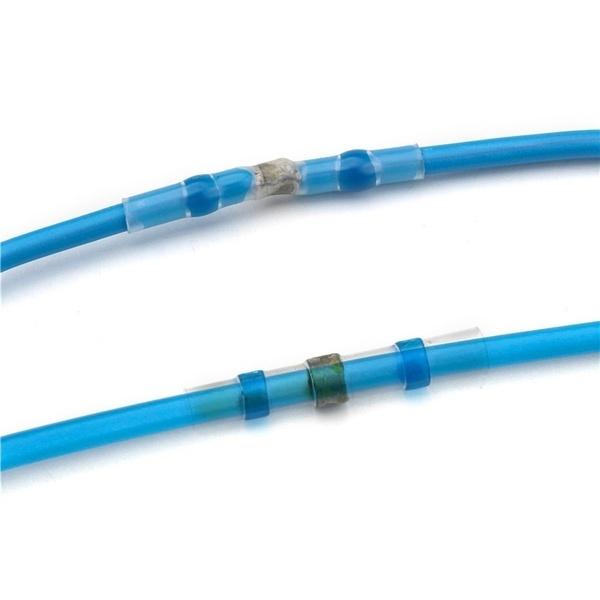

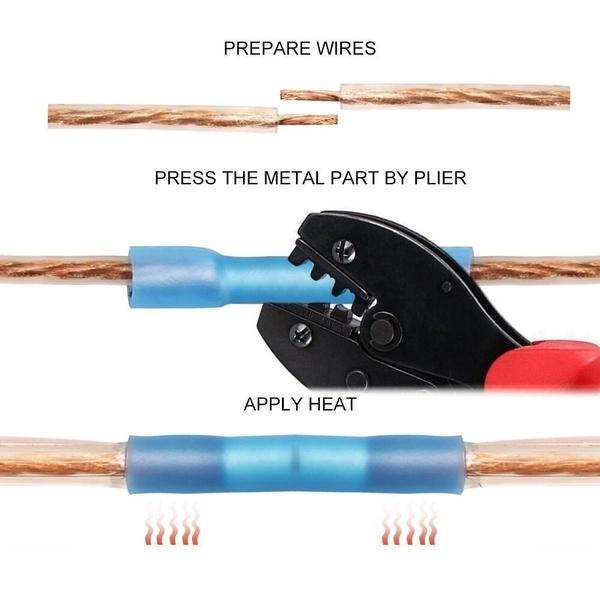

-When properly heated and shrunk, they provide a seal that is resistant to water, steam, salt and other contaminants.
-The translucent heat shrink material allows visual inspection of the connection, and included almost frequently-used connectors' size.
-Excellent splice for marine, automotive, outdoor, or harsh environment use.
Specification:
Product: Heat Shrink Terminals
Quantity: 200pcs (50pcs Solding Connectors+150 Heat Shrink Wire Connectors)
Color:
Solder Connectors: Yellow, Red and Blue.
Heat Shrink Connectors: Yellow, Black, Blue and Red.
Material: PE+Copper

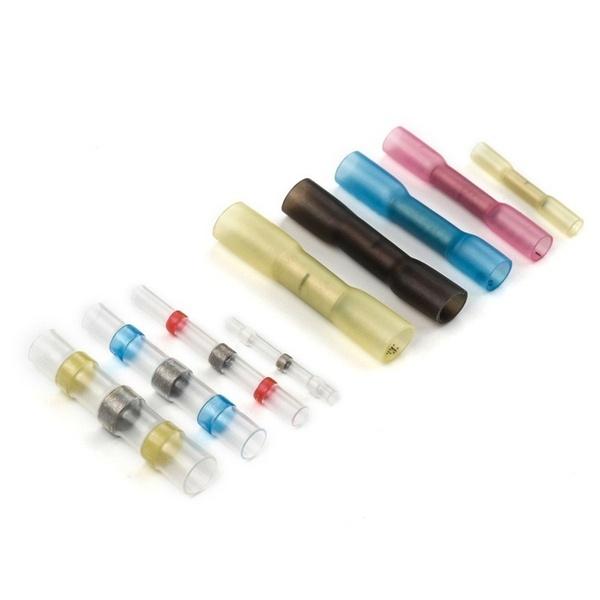

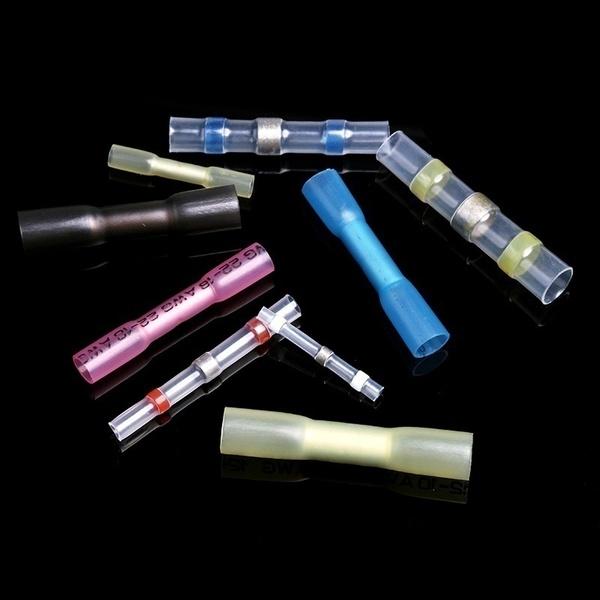

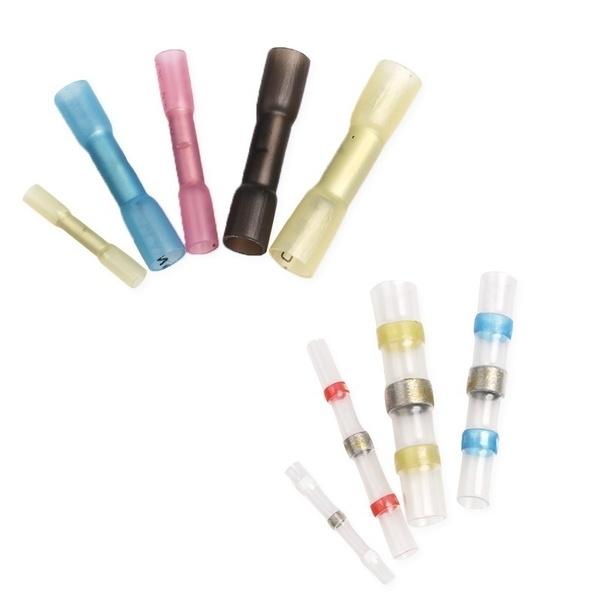

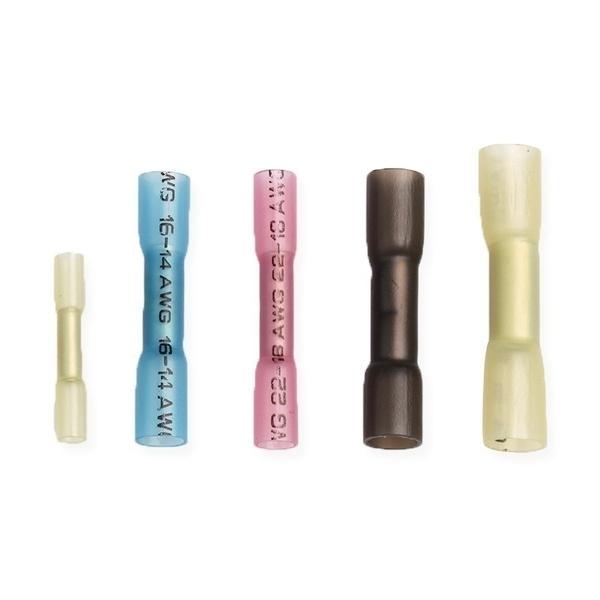

Size:
1.Heat Shrink Connectors:
Yellow Heat Shrink Connectors: AWG 26-24 Suits cable/ wire sizes 0.5mm² 30PCS
Red Heat Shrink Connectors: AWG 22-18 fit Wire/Cable 0.5-1.5mm² 40PCS
Blue Heat Shrink Connectors: AWG 16-14 fit Wire/Cable 1.5-2.5mm² 40PCS
Black Heat Shrink Connectors: AWG 12-14 Suits cable/ wire sizes 3.5mm² 20PCS
Yellow Heat Shrink Connectors: AWG 12-10 fit Wire/Cable 4.0-6.0mm² 20PCS
2.Solding Connectors:
White Soldering Connectors: AWG 26-24 Suits cable/ wire sizes 0.25-0.34mm² 10PCS
Red Soldering Connectors: AWG 22-16 fit Wire/Cable 0.5-1 mm² 20PCS
Blue Soldering Connectors: AWG 16-14 fit Wire/Cable 1.5-2.5 mm² 15PCS
Yellow Soldering Connectors: AWG 12-10 fit Wire/Cable 4.0-6.0mm² 5PCS
Package Included:
50 x Solder Seal Connectors + 150 x Heat Shrink Wire Connectors With Box.
